AET ThinQ

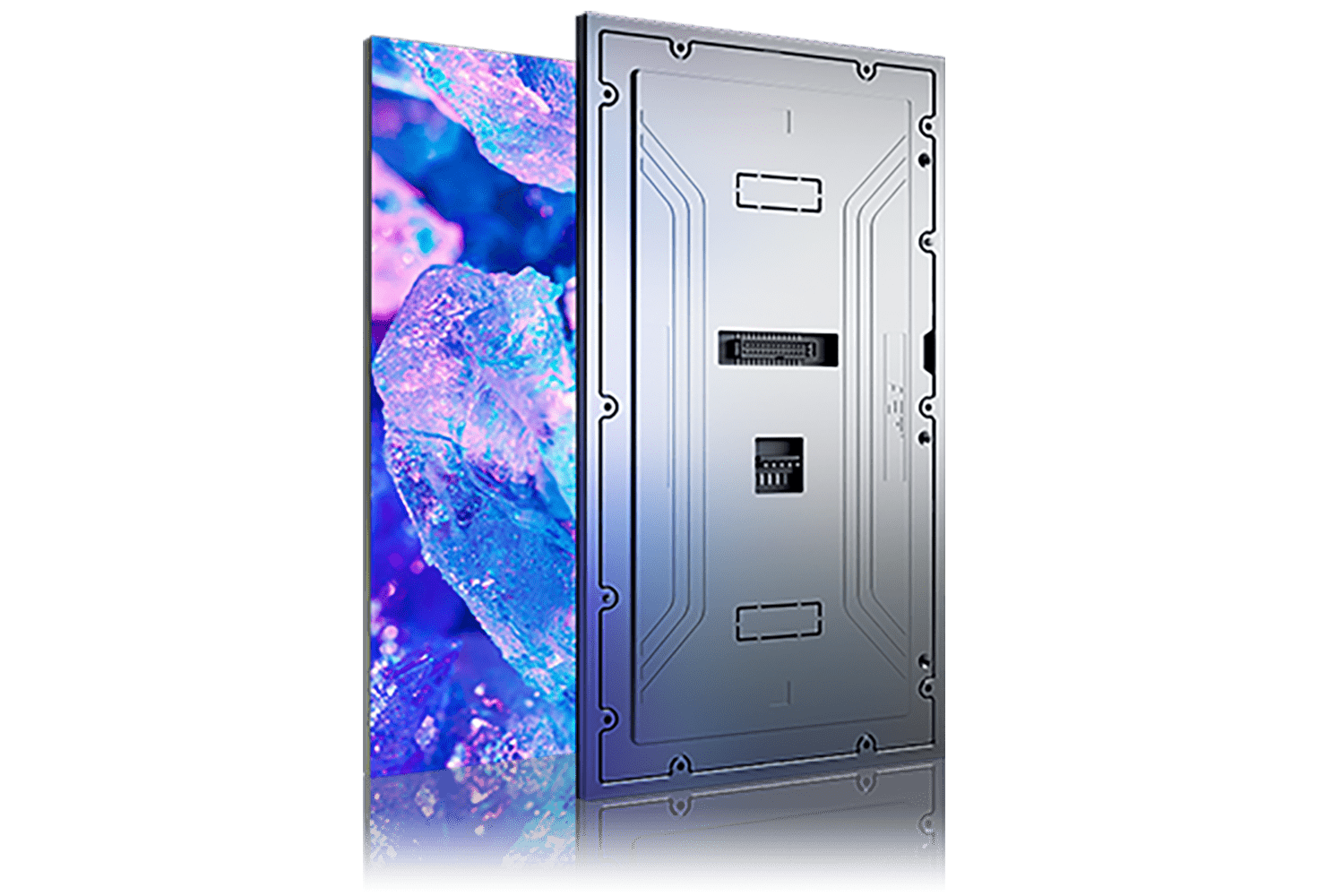

imira Series

High refresh rate of 3840Hz I High Brightness >600nit | Front maintenance | Wide viewing angle I Multiple pixel pitch availableDie-cast aluminum / Aluminum-magnesium alloy cabinet.

iMira-A

iMira-B

iMira-C

Key Features

Image Hotspot Pointers

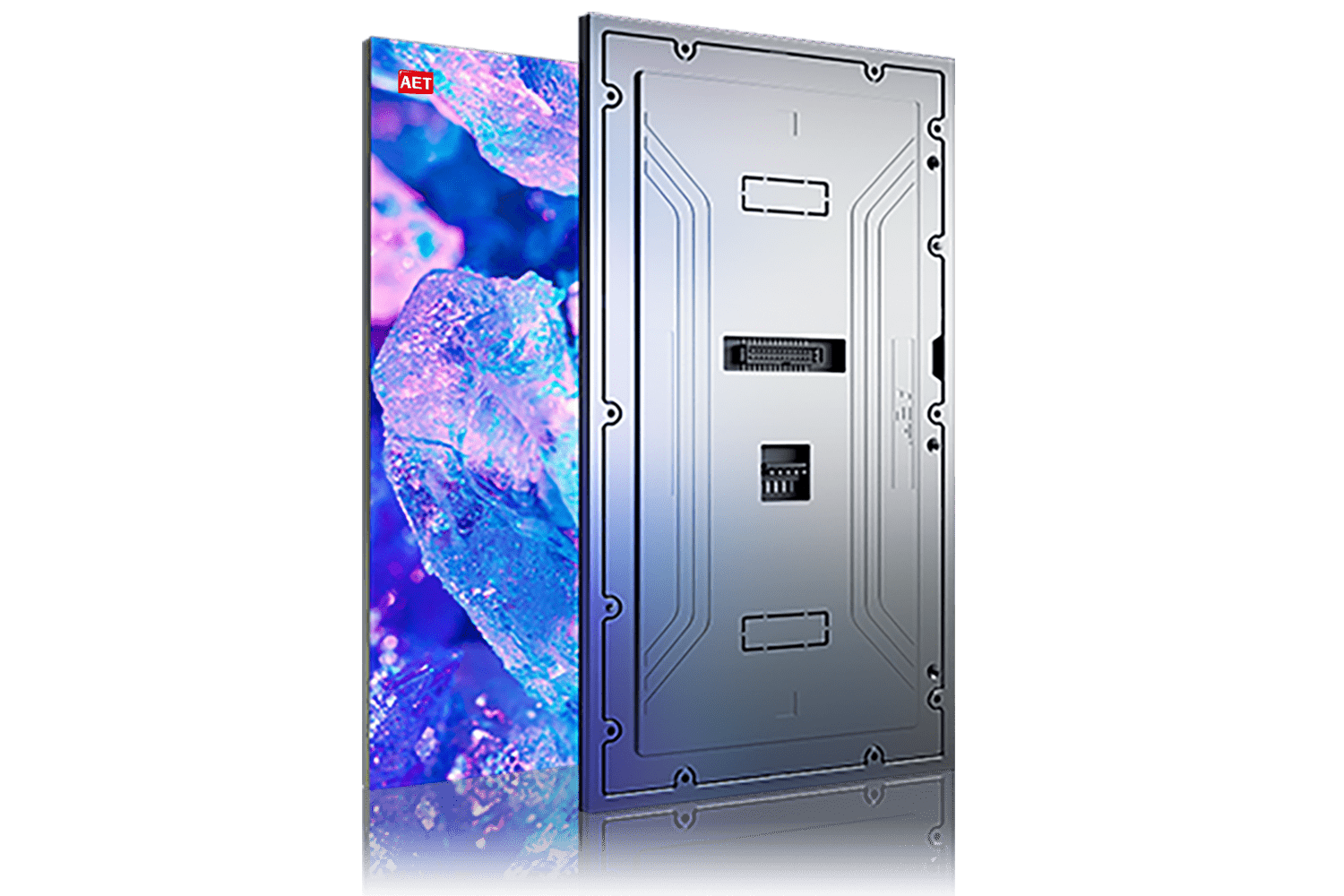

Your Image

Features

Features

Front Maintenance

Features

Multiple pixel pitch

Features

High Brightness

Features

Front Maintenance

Features

Multiple pixel pitch

Features

High Brightness

Popup Image

Specs

Module Parameter LED Type 1R1G1B LED
Pixel Pitch (mm) 1.59mm
Cabinet Resolution (W*H, Pixel) 320×180
Cabinet Dimension (W×H ) 510(W)×1721(H)×28
Density 393,680/m2
Servicing Front
Cabinet Material Die-cast Aluminum/Aluminum-magnesium alloy
Cabinet Weight ≥23.25kg/cabinet
Optical Parameter Single-dot Brightness Calibration Available
Single-dot Colour Calibration Available
Brightness (nits) 500-10000 Adjustable
Colour Temperature (K) ≥160° K
Viewing Angle (Horizontal/Vertical) ≥160°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 7000:1
Electrical Parameter Max Power Consumption (W/m2 ≤630
Average Power Consumption (W/m2 ≤200
Input Power Voltage AC 220V±15%V,50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120
Refresh Rate (Hz) ≥3840 Hz
Colour Depth (bits) 14-16
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +45
Storage Temp (°C) -20 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 10-95%
