AET ThinQ

DREAM WALL

Manufactured for the B2B, and Education Sector, Dream Wall cultivates dynamic engagement with its interactive displays, featuring intuitive interfaces and captivating visuals.

New Layer

Key Features

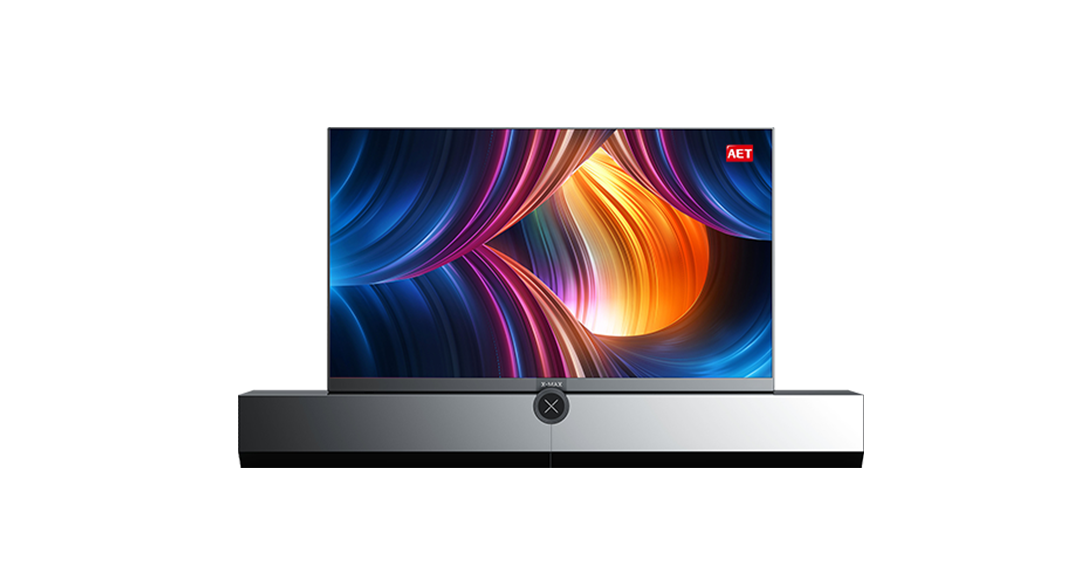

Image Hotspot Pointers
Your Image

Features

Features

Integrated All in one Design

Features

Stunning Visuals

Features

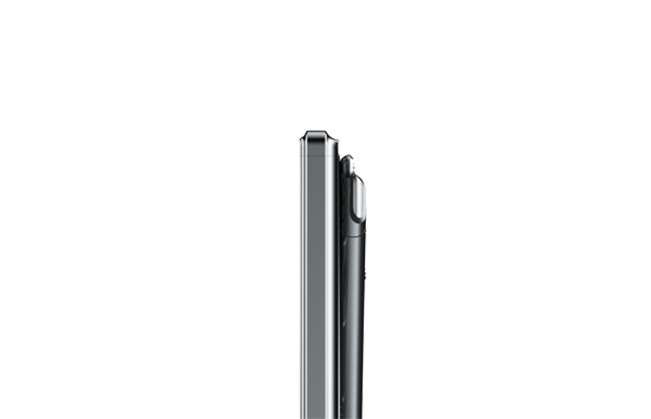

Ultra Thin And Light

Features

Wireless ClickShare

Features

Integrated All in one Design

Features

Stunning Visuals

Popup Image

Specs

Optical Parameter Pixel pitch 0.9 mm
Size (mm) 2421.2×1461.8×28.5
Resolution 1920×1080
Aspect Ratio 16:9
Brightness/nit 200-1000 Adjustable
Colour Temperature/ k 500-10000 Adjustable
Contrast Ratio 7000:1
Refresh Rate (Hz) 3840
Frame Rate (Hz) 60
Viewing angle (Horizontal/Vertical) 170°/170°
Colour Depth (bit) 16
Material Aluminum Alloy
Installation Method Pirtable Stand, Ground Stacking, Wall Mounted, Hanging
Electrical Parameter Max Power Consumption /KW 2.05 (common cathode)
Average Power Consumption /KW 0.92 (common cathode)
Input Power Voltage /V AC220V±15% 50/60 Hz
Physical Parameter Weight/Cabinet (kg) ≤94
Weight of Portable Stand (kg) ≈60
Weight of Hanging Rods (kg) ≈30-40
Weight of Grounding Support (kg) ≈60
Interface Type Input Interface HDMI 1.3×2
USB2.0×1 (expandable upto 3)
USB3.0×1
Gigabit network port×1
Output Interface HDMI 1.3 LOOP×1
Fiber optic audio SPDIF×1
Audio 3.5mm×2
Functional Audio 2×15W Speaker
Controller with Bluetooth Supports adjustment of brightness, volume, colour temperature, signal switching, stand by, etc.
OP Operating System The desktop UI system customized based on android 11, can add third-party app applications
System Basic frequency 1.6G 8 bit 4 Core processor
RAM/ROM Standard configuration: DDR4/32 GB, Max RWD 3.9 GHz
Video Output Supporting : 3840×2160@60Hz (max)
Buttons Brightness +/-, Volume +/-, Signal Switching, On/Off
Double Wifi Modes Wifi access & Wireless Hotspot can be carried out at the same time
Standard Accessories 110×Screen×1, Bracket for wall mounted×1 set; Controller×1; HDMI Cable×1; Installation Toll×1 set; Installation USB×1
Optional Accessories Cabinet for grounding support×1 set; Bracket for hanging×1 set; System for touch screen/ Infrared control system (ONLY available for DW-110”, DW-120”, DW-138” and DW-165”)


Optical Parameter Pixel pitch 1.39 mm
Size (mm) 2674×1610×28.5
Resolution 1920×1080
Aspect Ratio 16:9
Brightness/nit 200-1000 Adjustable
Colour Temperature/ k 500-10000 Adjustable
Contrast Ratio 7000:1
Refresh Rate (Hz) 3840
Frame Rate (Hz) 60
Viewing angle (Horizontal/Vertical) 170°/170°
Colour Depth (bit) 16
Material Aluminum Alloy
Installation Method Portable Stand, Ground Stacking, Wall Mounted, Hanging
Electrical Parameter Max Power Consumption /KW ≤2.6 (common cathode)
Average Power Consumption /KW ≤0.78 (common cathode)
Input Power Voltage /V AC220V±15% 50/60 Hz
Physical Parameter Weight/Cabinet (kg) 112
Weight of Portable Stand (kg) ≈60
Weight of Hanging Rods (kg) ≈30-40
Weight of Grounding Support (kg) ≈60
Interface Type Input Interface HDMI 1.3×2
USB2.0×1 (expandable upto 3)
USB3.0×1
Gigabit network port×1
Output Interface HDMI 1.3 LOOP×1
Fiber optic audio SPDIF×1
Audio 3.5mm×2


Optical Parameter Pixel pitch 1.5 mm
Size (mm) 2880×1620×28
Resolution 1920×1080
Aspect Ratio 16:9
Brightness/nit 200-1000 Adjustable
Colour Temperature/ k 500-10000 Adjustable
Contrast Ratio 7000:1
Refresh Rate (Hz) 3840
Frame Rate (Hz) 60
Viewing angle (Horizontal/Vertical) 160°/160°
Colour Depth (bit) 16
Material Die-casting Aluminum/ Aluminum Magnesium Alloy
Installation Method Portable Stand, Ground Stacking, Wall Mounted, Hanging
Electrical Parameter Max Power Consumption /KW ≤3.05 (common cathode)/≤6.5 (common cathode)
Average Power Consumption /KW ≤0.92 (common cathode)/≤2.0 (common cathode)
Input Power Voltage /V AC220V±15% 50/60 Hz
Physical Parameter Weight/Cabinet (kg) ≤127
Weight of Portable Stand (kg) ≈60
Weight of Hanging Rods (kg) ≈30-40
Weight of Grounding Support (kg) ≈60
Interface Type Input Interface HDMI 1.3×2
USB2.0×1 (expandable upto 3)
USB3.0×1
Gigabit network port×1
Output Interface HDMI 1.3 LOOP×1
Fiber optic audio SPDIF×1
Audio 3.5mm×2
Functional Audio 2×15W Speaker
Controller with Bluetooth Supports adjustment of brightness, volume, colour temperature, signal switching, stand by, etc.
OP Operating System The desktop UI system customized based on android 11, can add third-party app applications
System Basic frequency 1.6G 8 bit 4 Core processor
RAM/ROM Standard configuration: DDR4/32 GB, Max RWD 3.9 GHz
Video Output Supporting : 3840×2160@60Hz (max)
Buttons Brightness +/-, Volume +/-, Signal Switching, On/Off
Double Wifi Modes Wifi access & Wireless Hotspot can be carried out at the same time
Standard Accessories 130×Screen×1, Bracket for wall mounted×1 set; Controller×1; HDMI Cable×1; Installation Toll×1 set; Installation USB×1
Optional Accessories Cabinet for grounding support×1 set; Bracket for hanging×1 set; System for touch screen/ Infrared control system (ONLY available for DW-110”, DW-120”, DW-138” and DW-165”)


Optical Parameter Pixel pitch 1.5 mm
Size (mm) 2880×1620×28
Resolution 1920×1080
Aspect Ratio 16:9
Brightness/nit 200-1000 Adjustable
Colour Temperature/ k 500-10000 Adjustable
Contrast Ratio 7000:1
Refresh Rate (Hz) 3840
Frame Rate (Hz) 60
Viewing angle (Horizontal/Vertical) 160°/160°
Colour Depth (bit) 16
Material Die-casting Aluminum/ Aluminum Magnesium Alloy
Installation Method Portable Stand, Ground Stacking, Wall Mounted, Hanging
Electrical Parameter Max Power Consumption /KW ≤3.05 (common cathode)/≤6.5 (common cathode)
Average Power Consumption /KW ≤0.92 (common cathode)/≤2.0 (common cathode)
Input Power Voltage /V AC220V±15% 50/60 Hz
Physical Parameter Weight/Cabinet (kg) ≤127
Weight of Portable Stand (kg) ≈60
Weight of Hanging Rods (kg) ≈30-40
Weight of Grounding Support (kg) ≈60
Interface Type Input Interface HDMI 1.3×2
USB2.0×1 (expandable upto 3)
USB3.0×1
Gigabit network port×1
Output Interface HDMI 1.3 LOOP×1
Fiber optic audio SPDIF×1
Audio 3.5mm×2
Functional Audio 2×15W Speaker
Controller with Bluetooth Supports adjustment of brightness, volume, colour temperature, signal switching, stand by, etc.
OP Operating System The desktop UI system customized based on android 11, can add third-party app applications
System Basic frequency 1.6G 8 bit 4 Core processor
RAM/ROM Standard configuration: DDR4/32 GB, Max RWD 3.9 GHz
Video Output Supporting : 3840×2160@60Hz (max)
Buttons Brightness +/-, Volume +/-, Signal Switching, On/Off
Double Wifi Modes Wifi access & Wireless Hotspot can be carried out at the same time
Standard Accessories 138”×Screen×1, Bracket for wall mounted×1 set; Controller×1; HDMI Cable×1; Installation Toll×1 set; Installation USB×1
Optional Accessories Cabinet for grounding support×1 set; Bracket for hanging×1 set; System for touch screen/ Infrared control system (ONLY available for DW-110”, DW-120”, DW-138” and DW-165”)


Optical Parameter Pixel pitch 1.5 mm
Size (mm) 2880×1620×28
Resolution 1920×1080
Aspect Ratio 16:9
Brightness/nit 200-1000 Adjustable
Colour Temperature/ k 500-10000 Adjustable
Contrast Ratio 7000:1
Refresh Rate (Hz) 3840
Frame Rate (Hz) 60
Viewing angle (Horizontal/Vertical) 160°/160°
Colour Depth (bit) 16
Material Die-casting Aluminum/ Aluminum Magnesium Alloy
Installation Method Portable Stand, Ground Stacking, Wall Mounted, Hanging
Electrical Parameter Max Power Consumption /KW ≤3.05 (common cathode)/≤6.5 (common cathode)
Average Power Consumption /KW ≤0.92 (common cathode)/≤2.0 (common cathode)
Input Power Voltage /V AC220V±15% 50/60 Hz
Physical Parameter Weight/Cabinet (kg) ≤127
Weight of Portable Stand (kg) ≈60
Weight of Hanging Rods (kg) ≈30-40
Weight of Grounding Support (kg) ≈60
Interface Type Input Interface HDMI 1.3×2
USB2.0×1 (expandable upto 3)
USB3.0×1
Gigabit network port×1
Output Interface HDMI 1.3 LOOP×1
Fiber optic audio SPDIF×1
Audio 3.5mm×2
Functional Audio 2×15W Speaker
Controller with Bluetooth Supports adjustment of brightness, volume, colour temperature, signal switching, stand by, etc.
OP Operating System The desktop UI system customized based on android 11, can add third-party app applications
System Basic frequency 1.6G 8 bit 4 Core processor
RAM/ROM Standard configuration: DDR4/32 GB, Max RWD 3.9 GHz
Video Output Supporting : 3840×2160@60Hz (max)
Buttons Brightness +/-, Volume +/-, Signal Switching, On/Off
Double Wifi Modes Wifi access & Wireless Hotspot can be carried out at the same time
Standard Accessories 165”Screen×1, Bracket for wall mounted×1 set; Controller×1; HDMI Cable×1; Installation Toll×1 set; Installation USB×1
Optional Accessories Bracket for hanging×1 set; System for touch screen/ Infrared control system (ONLY available for DW-110”, DW-120”, DW-138” and DW-165”)


Optical Parameter Pixel pitch 1.5 mm
Size (mm) 2880×1620×28
Resolution 1920×1080
Aspect Ratio 16:9
Brightness/nit 200-1000 Adjustable
Colour Temperature/ k 500-10000 Adjustable
Contrast Ratio 7000:1
Refresh Rate (Hz) 3840
Frame Rate (Hz) 60
Viewing angle (Horizontal/Vertical) 160°/160°
Colour Depth (bit) 16
Material Die-casting Aluminum/ Aluminum Magnesium Alloy
Installation Method Portable Stand, Ground Stacking, Wall Mounted, Hanging
Electrical Parameter Max Power Consumption /KW ≤3.05 (common cathode)/≤6.5 (common cathode)
Average Power Consumption /KW ≤0.92 (common cathode)/≤2.0 (common cathode)
Input Power Voltage /V AC220V±15% 50/60 Hz
Physical Parameter Weight/Cabinet (kg) ≤127
Weight of Portable Stand (kg) ≈60
Weight of Hanging Rods (kg) ≈30-40
Weight of Grounding Support (kg) ≈60
Interface Type Input Interface HDMI 1.3×2
USB2.0×1 (expandable upto 3)
USB3.0×1
Gigabit network port×1
Output Interface HDMI 1.3 LOOP×1
Fiber optic audio SPDIF×1
Audio 3.5mm×2
Functional Audio 2×15W Speaker
Controller with Bluetooth Supports adjustment of brightness, volume, colour temperature, signal switching, stand by, etc.
OP Operating System The desktop UI system customized based on android 11, can add third-party app applications
System Basic frequency 1.6G 8 bit 4 Core processor
RAM/ROM Standard configuration: DDR4/32 GB, Max RWD 3.9 GHz
Video Output Supporting : 3840×2160@60Hz (max)
Buttons Brightness +/-, Volume +/-, Signal Switching, On/Off
Double Wifi Modes Wifi access & Wireless Hotspot can be carried out at the same time
Standard Accessories 184”Screen×1, Bracket for wall mounted×1 set; Controller×1; HDMI Cable×1; Installation Toll×1 set; Installation USB×1
