AET ThinQ

AMO SERIES

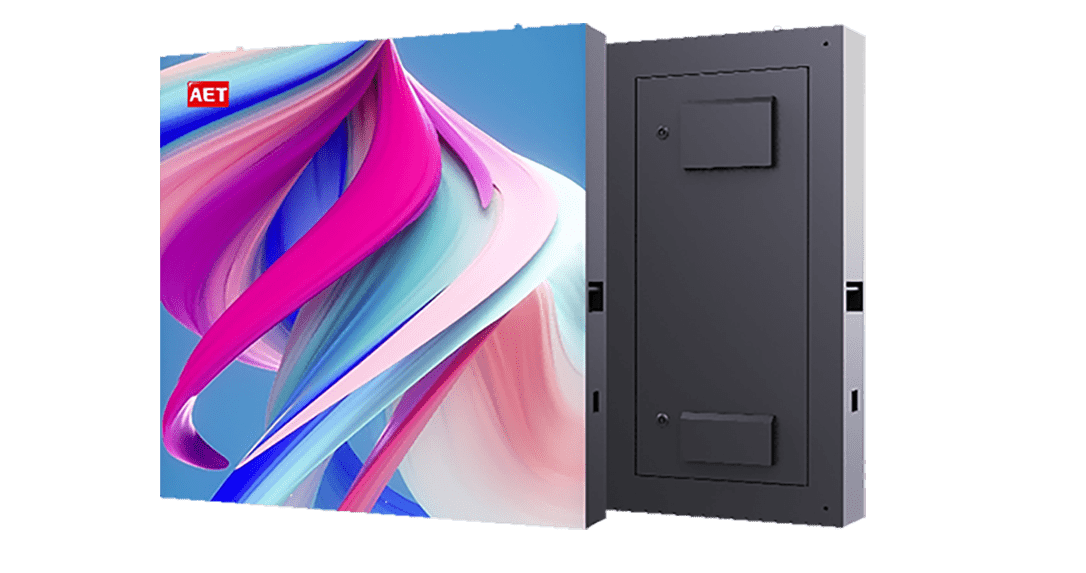

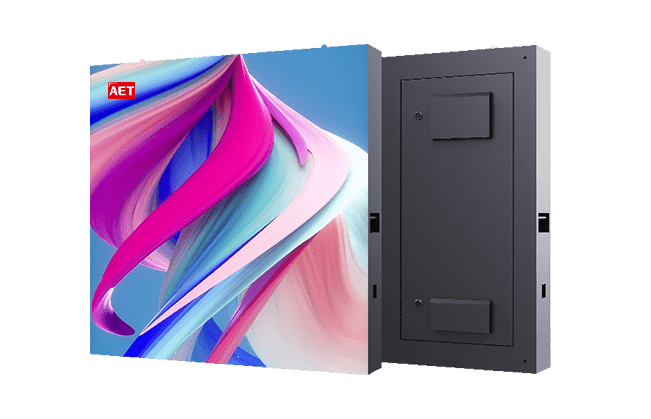

Engineered for Real Estate, and Advertising, AMO Series empowers superior motion control with its unparalleled precision and dynamic response.

New Layer

Key Features

Image Hotspot Pointers
Your Image

Features

Features

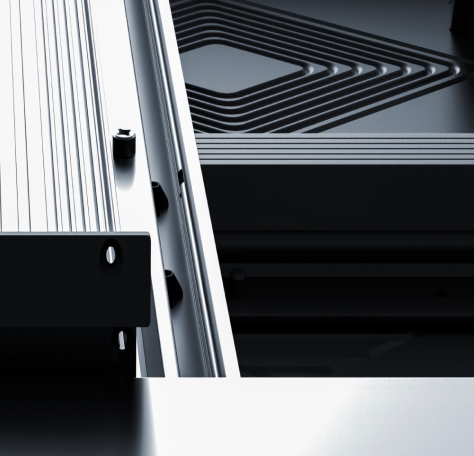

Effecient Heat dissipation

Features

High brightness

Features

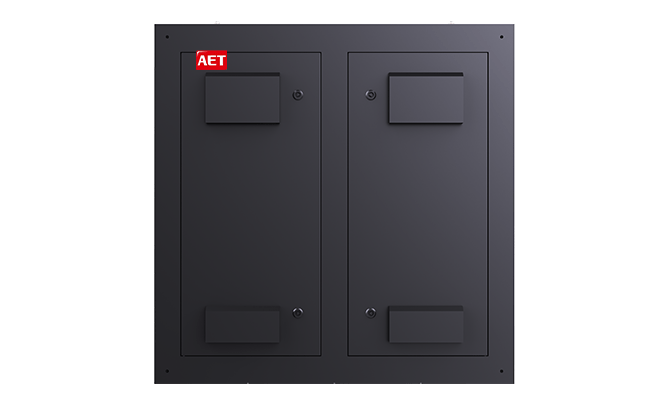

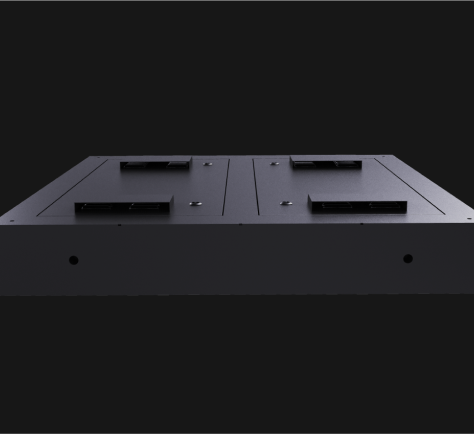

Rear Maintenance

Features

High Protection of IP65

Features

Effecient Heat dissipation

Features

High brightness

Popup Image

Specs

Module Parameter LED Type NS Gold 1415 NS Copper 1415 DSBJ/BMTC 1415
Pixel pitch 2.5 mm
Module Resolution (W×H Pixel) 128×64
Module Dimension (mm) 320 (W)×160 (H), Plastic Back Shell
Module Flatness (mm) ≤0.2
Pixel/m2 160,000
Servicing Rear
Back Shell Die-cast Aluminum
Cabinet Size (W×H) 960mm×960×87mm
IP Rating IP65
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 5500-6500 5000-6000 4500-5500
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 16
Electrical Parameter Max Power Consumption (W/m2) ≤800
Average Power Consumption (W/m2) ≤266
Input Power Voltage AC100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 1920-3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 800,000
Operating Temp (°C) -10 – +45
Storage Temp (°C) -40 – +80
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 10-70%


Module Parameter LED Type NS Gold 1921 NS Copper 1921 DSBJ/BMTC 1921
Pixel pitch 3.076 mm
Module Resolution (W×H Pixel) 104×52
Module Dimension (mm) 320 (W)×160 (H), Plastic Back Shell
Module Flatness (mm) ≤0.2
Pixel/m2 105,625
Servicing Rear
Back Shell Sheet Metal
Cabinet Size (W×H) 960mm×960×135mm
IP Rating IP65
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 6000-7000 6000-7000 4500-5500
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 13
Electrical Parameter Max Power Consumption (W/m2) ≤800
Average Power Consumption (W/m2) ≤266
Input Power Voltage AC100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 1920-3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%


Module Parameter LED Type NS Gold 1921 NS Copper 1921 DSBJ/BMTC 1921
Pixel pitch 4.0 mm
Module Resolution (W×H Pixel) 80×40
Module Dimension (mm) 320 (W)×160 (H), Plastic Back Shell
Module Flatness (mm) ≤0.2
Pixel/m2 62,500
Servicing Rear
Back Shell Sheet Metal
Cabinet Size (W×H) 960mm×960×135mm
IP Rating IP65
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 5500-6000 4500-5500 4500-5500
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 10
Electrical Parameter Max Power Consumption (W/m2) ≤800
Average Power Consumption (W/m2) ≤266
Input Power Voltage AC100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 1920-3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%


Module Parameter LED Type NS Gold 2727 NS Copper 2727 DSBJ/BMTC 2727
Pixel pitch 5.0 mm
Module Resolution (W×H Pixel) 64×32
Module Dimension (mm) 320 (W)×160 (H), Plastic Back Shell
Module Flatness (mm) ≤0.2
Pixel/m2 40,000
Servicing Rear
Back Shell Sheet Metal
Cabinet Size (W×H) 960mm×960×135mm
Weight (KG) ≤48 kg/cabinet
IP Rating IP65
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 6000-6500 5500-6000 5500-6000
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 8
Electrical Parameter Max Power Consumption (W/m2) ≤800
Average Power Consumption (W/m2) ≤266
Input Power Voltage AC100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 1920-3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%


Module Parameter LED Type NS Gold 3535 NS Copper 3535 DSBJ/BMTC 3535
Pixel pitch 6.6667 mm
Module Resolution (W×H Pixel) 48×24
Module Dimension (mm) 320 (W)×160 (H), Plastic Back Shell
Module Flatness (mm) ≤0.2
Pixel/m2 22,500
Servicing Rear
Back Shell Sheet Metal
Cabinet Size (W×H) 960mm×960×135mm
Weight (KG) ≤48 kg/cabinet
IP Rating IP65
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 6000-6500 5500-6000 5500-6000
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 6
Electrical Parameter Max Power Consumption (W/m2) ≤800
Average Power Consumption (W/m2) ≤266
Input Power Voltage AC100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 1920-3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%


Module Parameter LED Type NS Gold 3535 NS Copper 3535 DSBJ/BMTC 3535
Pixel pitch 8.0 mm
Module Resolution (W×H Pixel) 40×20
Module Dimension (mm) 320 (W)×160 (H), Plastic Back Shell
Module Flatness (mm) ≤0.2
Pixel/m2 15,625
Servicing Rear
Back Shell Sheet Metal
Cabinet Size (W×H) 960mm×960×135mm
Weight (KG) ≤48 kg/cabinet
IP Rating IP65
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 6000-6500 5500-6000 5500-6000
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 5
Electrical Parameter Max Power Consumption (W/m2) ≤800
Average Power Consumption (W/m2) ≤266
Input Power Voltage AC100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 1920-3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%


Module Parameter LED Type NS Gold 3535 NS Copper 3535 DSBJ/BMTC 3535
Pixel pitch 10.0 mm
Module Resolution (W×H Pixel) 32×16
Module Dimension (mm) 320 (W)×160 (H), Plastic Back Shell
Module Flatness (mm) ≤0.2
Pixel/m2 10,000
Servicing Rear
Back Shell Sheet Metal
Cabinet Size (W×H) 960mm×960×135mm
Weight (KG) ≤48 kg/cabinet
IP Rating IP65
Optical Parameter Single Dot Brightness Calibration Available
Single Dot Colour Calibration Available
Brightness (nits) 4500-5500 4500-5500 4500-5500
Colour Temperature (K) 3200-9300 – Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Contrast Ratio 5000:1
Scan Rate 4
Electrical Parameter Max Power Consumption (W/m2) ≤800
Average Power Consumption (W/m2) ≤266
Input Power Voltage AC100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120 Hz
Refresh Rate (Hz) 1920-3840 Hz
Colour Depth (bits) 14-16 bit
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%


AET LED · PRODUCT DOCUMENTATION

AMO Series Downloads

Download technical datasheets for the AMO Series Outdoor LED Displays. Explore specifications for your preferred pixel pitch below.

PDF
DATASHEET
OUTDOOR LED DISPLAY

AMO Series P2.5

Technical datasheet and product specifications for the P2.5 display.

Download Datasheet
PDF
DATASHEET
OUTDOOR LED DISPLAY

AMO Series P3

Technical datasheet and product specifications for the P3 display.

Download Datasheet
PDF
DATASHEET
OUTDOOR LED DISPLAY

AMO Series P4

Technical datasheet and product specifications for the P4 display.

Download Datasheet
PDF
DATASHEET
OUTDOOR LED DISPLAY

AMO Series P6.6

Technical datasheet and product specifications for the P6.6 display.

Download Datasheet
PDF
DATASHEET
OUTDOOR LED DISPLAY

AMO Series P8

Technical datasheet and product specifications for the P8 display.

Download Datasheet
PDF
DATASHEET
OUTDOOR LED DISPLAY

AMO Series P10

Technical datasheet and product specifications for the P10 display.

Download Datasheet
```
