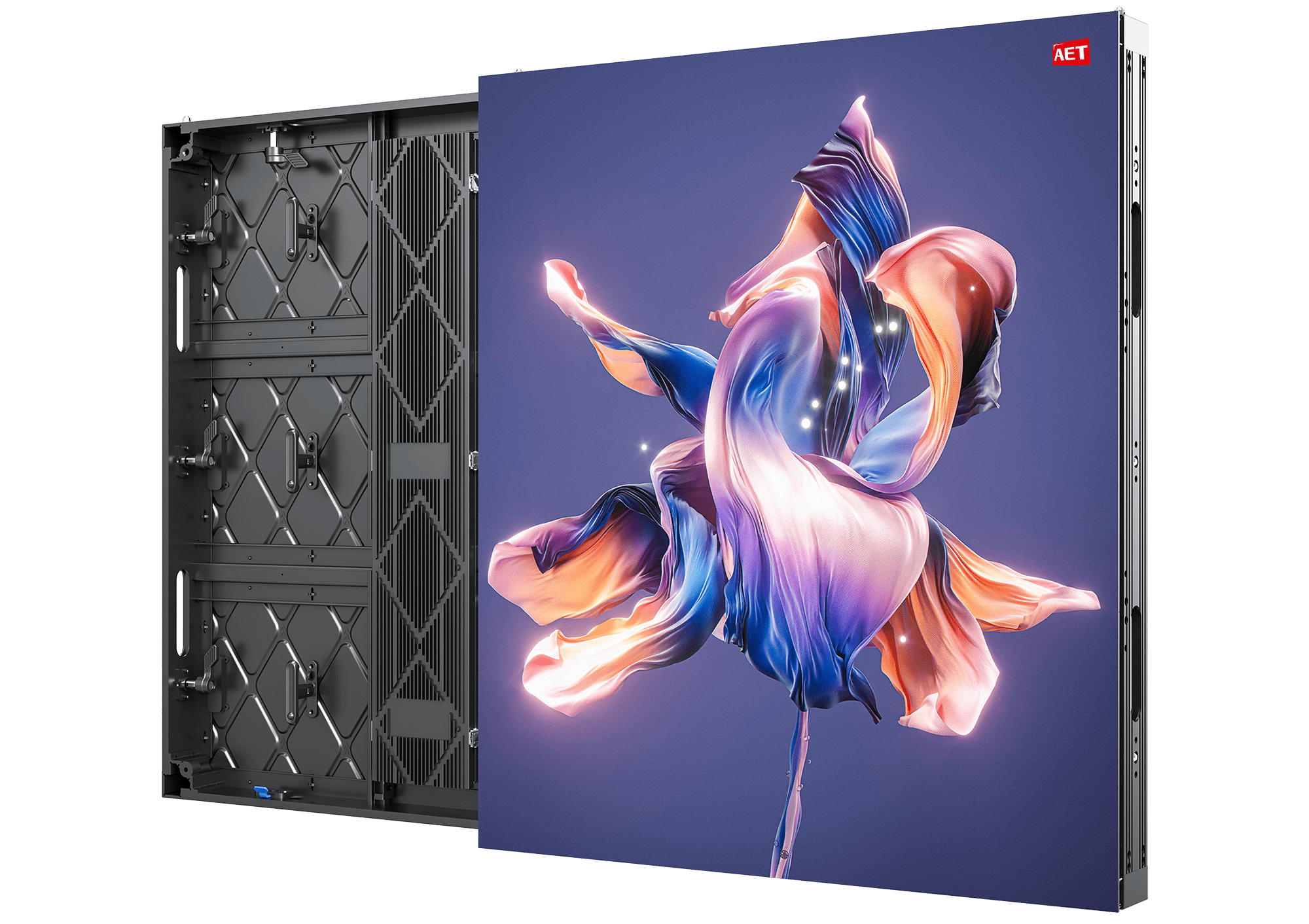

AEO Series

Manufactured for Real Estate, and Advertising, AEO Series provides seamless production processes with its robust performance and intuitive operation.

New Layer

AEO

AEO Plus

AEO Pro

Key Features

Image Hotspot Pointers

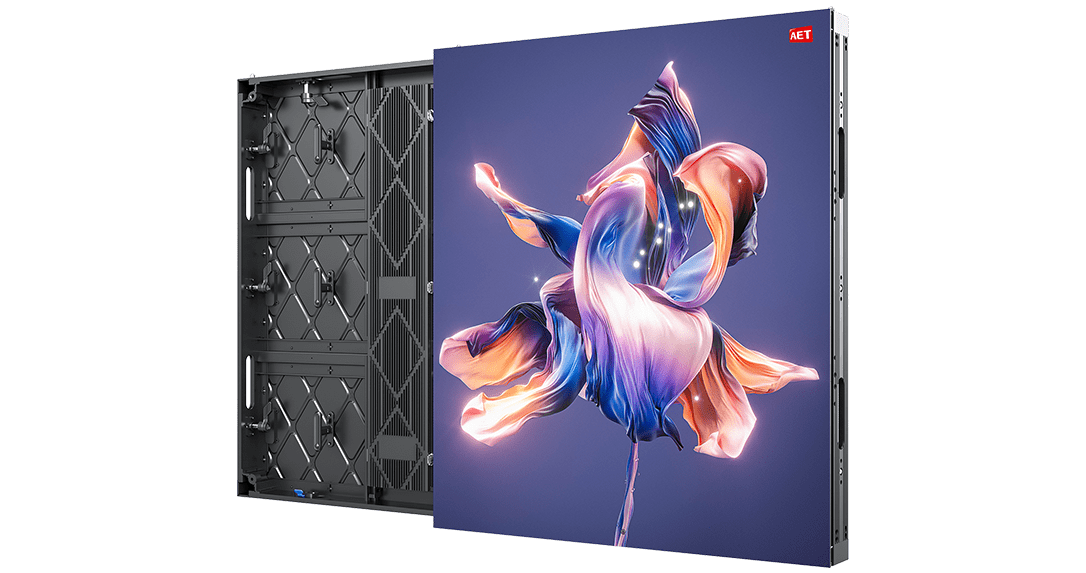

Your Image

Features

Features

Common Cathode Technology

Features

High Protection of IP65

Features

Front & Rear Maintenance

Features

High Brightness

Features

Common Cathode Technology

Features

High Protection of IP65

Popup Image

Specs

Module Parameter LED Type NS Gold 1415 (Common Anode) NS Copper 1415 (Common Anode) BSBJ/Kinglight 1415 (Common Anode)
Pixel Pitch (mm) 4.0
Module Resolution (W*H, Pixel) 120×80
Module Dimension (mm) 480 (W)×320(H)
Density 62,500/m2
Servicing Front/Rear
Cabinet Material Aluminum Extrusion
Back Shell Plastic
Cabinet Size (W*H) 960mm×960×90mm
IP Rating IP65
Optical Parameter Single-dot Brightness Calibration Available
Single-dot Colour Calibration Available
Brightness (nits) 6000-7000 5500-6000 5000-5500
Colour Temperature (K) 3200-9000 Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Scan Rate 10
Contrast Ratio 5000:1
Electrical Parameter Max Power Consumption (W/m2 ≤550
Average Power Consumption (W/m2 ≤183
Input Power Voltage AC 100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120
Refresh Rate (Hz) 3840 Hz
Colour Depth (bits) 14-16
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%


Module Parameter LED Type NS Gold 1921 (Common Anode) NS Copper 1921 (Common Anode) BSBJ/Kinglight 1921 (Common Anode)
Pixel Pitch (mm) 5.0
Module Resolution (W*H, Pixel) 96×64
Module Dimension (mm) 480 (W)×320(H)
Density 40,000/m2
Servicing Front/Rear
Cabinet Material Aluminum Extrusion
Back Shell Plastic
Cabinet Size (W*H) 960mm×960×90mm
IP Rating IP65
Optical Parameter Single-dot Brightness Calibration Available
Single-dot Colour Calibration Available
Brightness (nits) 6000-7000 5500-6000 5000-5500
Colour Temperature (K) 3200-9000 Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Scan Rate 8
Contrast Ratio 5000:1
Electrical Parameter Max Power Consumption (W/m2 ≤550
Average Power Consumption (W/m2 ≤183
Input Power Voltage AC 100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120
Refresh Rate (Hz) 3840 Hz
Colour Depth (bits) 14-16
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%


Module Parameter LED Type NS Gold 2727 (Common Anode) NS Copper 2727 (Common Anode) DSBJ/BMTC 2727 (Common Anode)
Pixel Pitch (mm) 6.667
Module Resolution (W*H, Pixel) 72×48
Module Dimension (mm) 480 (W)×320(H)
Density 22,500/m2
Servicing Front/Rear
Cabinet Material Aluminum Extrusion
Back Shell Plastic
Cabinet Size (W*H) 960mm×960×90mm
IP Rating IP65
Optical Parameter Single-dot Brightness Calibration Available
Single-dot Colour Calibration Available
Brightness (nits) 6000-7000 5500-6000 5000-5500
Colour Temperature (K) 3200-9000 Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Scan Rate 6
Electrical Parameter Max Power Consumption (W/m2 ≤550
Average Power Consumption (W/m2 ≤183
Input Power Voltage AC 100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120
Refresh Rate (Hz) 1920-3840 Hz
Colour Depth (bits) 14-16
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%


Module Parameter LED Type NS Gold 2727 (Common Anode) NS Copper 2727 (Common Anode) DSBJ/Kinglight 2727 (Common Anode)
Pixel Pitch (mm) 8.0
Module Resolution (W*H, Pixel) 90×40
Module Dimension (mm) 480 (W)×320(H)
Density 15,625/m2
Servicing Front/Rear
Cabinet Material Aluminum Extrusion
Back Shell Plastic
Cabinet Size (W*H) 960mm×960×90mm
IP Rating IP65
Optical Parameter Single-dot Brightness Calibration Available
Single-dot Colour Calibration Available
Brightness (nits) 6000-7000 5500-6000 5000-5500
Colour Temperature (K) 3200-9000 Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Scan Rate 5
Contrast Ratio 5000:1
Electrical Parameter Max Power Consumption (W/m2 ≤650
Average Power Consumption (W/m2 ≤183
Input Power Voltage AC 100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120
Refresh Rate (Hz) 3840 Hz
Colour Depth (bits) 14-16
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%


Module Parameter LED Type NS Gold 3535 (Common Anode) NS Copper 3535 (Common Anode) DSBJ/Kinglight 3535 (Common Anode)
Pixel Pitch (mm) 10.0
Module Resolution (W*H, Pixel) 48×32
Module Dimension (mm) 480 (W)×320(H)
Density 10,000/m2
Servicing Front/Rear
Cabinet Material Aluminum Extrusion
Back Shell Plastic
Cabinet Size (W*H) 960mm×960×90mm
IP Rating IP65
Optical Parameter Single-dot Brightness Calibration Available
Single-dot Colour Calibration Available
Brightness (nits) 6000-7000 5500-6000 5000-5500
Colour Temperature (K) 3200-9000 Adjustable
Viewing Angle (Horizontal/Vertical) 140°
Brightness/Colour Uniformity ≥97%
Scan Rate 3
Contrast Ratio 5000:1
Electrical Parameter Max Power Consumption (W/m2 ≤550
Average Power Consumption (W/m2 ≤183
Input Power Voltage AC 100-240V, 50/60 (Hz)
Processing Parameter Drive Mode Constant Current Drive
Frame Rate (Hz) 30-120
Refresh Rate (Hz) 3840 Hz
Colour Depth (bits) 14-16
Operational Parameter Life Span, typ. (Hrs) 100,000
Operating Temp (°C) -20 – +60
Storage Temp (°C) -10 – +60
Operating Humidity (RH) 10-90%
Storage Humidity (RH) 0-90%
